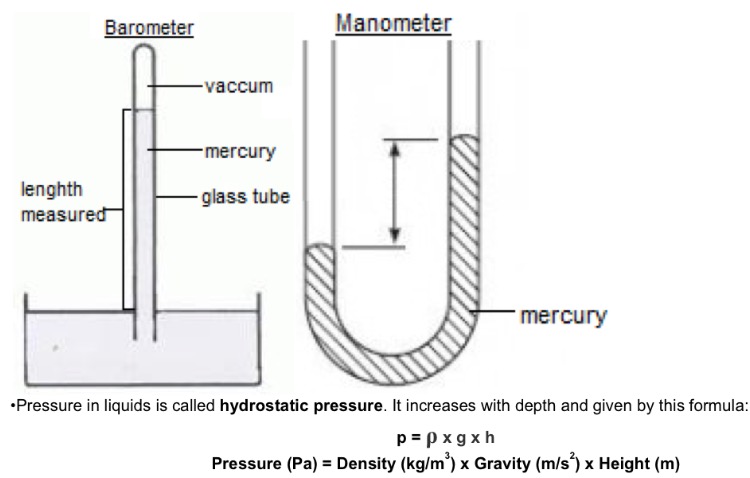

Barometer and manometer difference. Barometers have one open end and a closed end with a vacuum;. A barometer measures the pressure of the air around you A manometer is anything that measures pressure Therefore, all barometers are manometers If you are measuring the difference in air pressure between two parts of a system, that would be referred to as a manometer instead of as a barometer. A manometer is similar to a barometer in that the height difference in a working fluid, typically a liquid, is used to measure pressure differences However, a manometer does not have one end of the working liquid at vapor pressure An example of a Utube manometer is shown in the following figure C BC H p atm p v A H p atm B fluid 2 H AB.

The manometers are classified as 09/05/17 PRESSURE MEASUREMENT (FMHM) BY SASIDHARG 8 (i) Simple manometer Piezometer Utube manometer single column manometer • Vertical single column manometer • Inclined single column manometer (ii) Differential manometer Utube differential manometer Inverted Utube differential manometer 9 Barometer. And vice versa if the connected column is lower when you would add the difference to the barometer reading So a barometer makes a direct reading of atmospheric pressure where a manometer just compares the pressure inside a vessel to the outside pressure When you get a good response, please consider giving a best answer. A simple barometer is illustrated in the figure 1, Figure 1 Simple Barometer Explain the working of Manometer A manometer also has two repulsive forces against each other A force is exerted by the gas molecules in the flask The repulsive force is seen on the further region of the Mercury filled U tube;.

The difference in the height of the liquid on the two sides of the tube is the differential pressure – Other types of manometers include the barometer and the inclined manometer If you have any questions about manometer and its applications, add them in the comments below and we will get back to you in less than 24 hours. View full lesson http//edtedcom/lessons/thehistoryofthebarometerandhowitworksasafbaryosefA barometer is an instrument that measures air pressu. Ein Manometer ist ein Gerät, das Druck, typischerweise atmosphärischen Druck misst Manometer werden seit Jahrhunderten verwendet und kommen in einer Vielzahl von Designs, von älteren Glasröhren mit Quecksilber oder Wasser zu neuen digitalen Geräten Barometer Wie ein Manometer misst ein Barometer auch den atmosphärischen Druck.

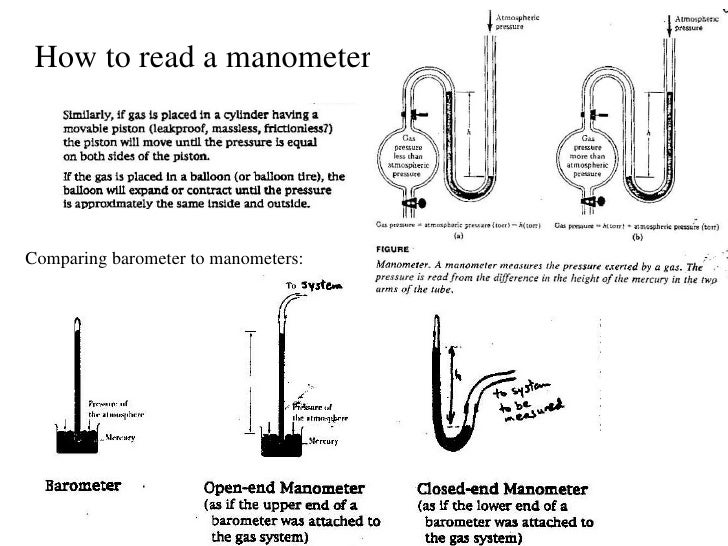

We've learned a lot about the phenomenon of pressure, so how exactly do we measure it?. The instruments used by Boyle to measure pressure were two the manometer, which measures differences in pressure, and the barometer, which measures the total pressure of the atmosphere A manometer is simply a bent piece of tubing, preferably glass, with one end closed When the liquid level in both arms is the same, the pressure of the sample. Difference Between Barometer and Manometer • Barometer is a type of closeend manometer • Barometer is specially designed to measure the atmospheric pressure, whereas manometer can also be used to measure the • In a manometer, both ends of the tube are open to outside (some may have a one closed.

The primary difference between a barometer and a manometer is A a barometer is used to measure atmospheric pressure, and a manometer is used to measure gauge pressure B a barometer uses mercury, while a manometer can use any liquid a barometer is used to measure atmospheric pressure, and a manometer is used to measure absolute pressure. Difference Between Barometer And Manometer Barometer Barometer, an instrument for measuring the pressure of the atmosphere Since atmospheric pressure decreases with altitude above sea level, a barometer can also be used to measure altitude Barometers are of two general types mercury and aneroid. Manometer & Barometer DRAFT 10th grade 0 times Physics 0% average accuracy 3 minutes ago hannche 0 Save Edit Edit Manometer & Barometer DRAFT 3 minutes ago.

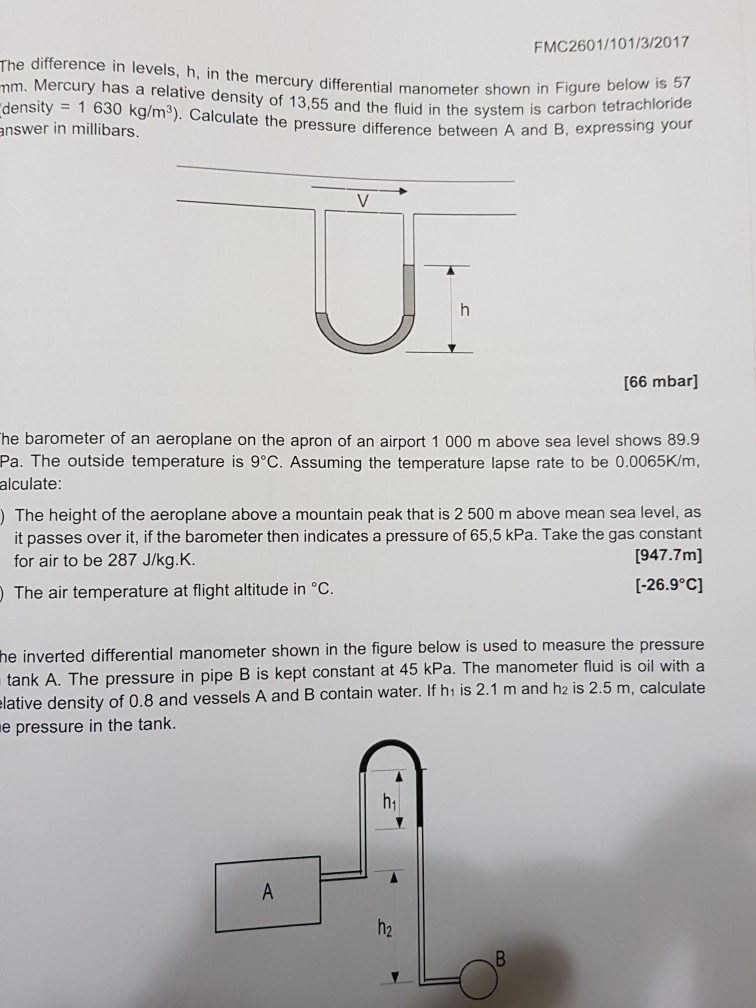

A liquid manometer in comparison to a mercury barometer, showing the difference in working principle A manometer allows the measurement of additional liquid/gas sources against atmospheric pressure or against other liquid/gas sources There are various types which allow you to adjust the pressure on one side to give a more accurate reading. What is the difference between barometer and manometer?. Differential Utube manometer (Fig 212) is very handy to measure the pressure difference directly and is basically similar to the Utube manometer discussed above What was the open end before is now connected to a different pressure, so that we measure the difference Now we have,.

That is force exerted by atmospheric. A dual tube manometer is a manometer that is designe d to read very high pressures A high pressure causes the need for a longer indicating tube, which is very inconvenient to the person reading the manometer A dualtube manometer solves this problem by having two tubes to read the pressure, a standard welltype manometer and a welltype manometer with the well at the 100inch reading on the. There are a few different devices that serve different purposes Barom.

The key difference between barometric pressure and atmospheric pressure is that barometric pressure is the pressure we measure using a barometer whereas atmospheric pressure is the pressure exerted by the atmosphere Atmosphere pressure and barometric pressure are two important concepts in pressure and thermodynamicsIt is vital to have a clear understanding of these concepts in order to. A simple barometer is illustrated in the figure 1, Figure 1 Simple Barometer Explain the working of Manometer A manometer also has two repulsive forces against each other A force is exerted by the gas molecules in the flask The repulsive force is seen on the further region of the Mercury filled U tube;. That is force exerted by atmospheric.

See more explanation on barometer by visiting following links 1 weatheraboutcom 2 wikepedia 3 wanttoknowit 6 Manometer A manometer is used to measure small and moderate pressure differences A manometer consists of a plastic or glass Utube, also called a U tube manometer. A barometer is an instrument to measure the environment pressure the range is very limited to about 5% A manometer is a standard pressure instrument, built for any defined measuring range, possibly up to 100 bar or more So a barometer is a special kind of manometer. A manometer is similar to a barometer in that the height difference in a working fluid, typically a liquid, is used to measure pressure differences However, a manometer does not have one end of the working liquid at vapor pressure An example of a Utube manometer is shown in the following figure BC H p atm p v A H p atm B C H AB fluid 1 fluid 2 g.

The manometer is used to find the difference between the pressure of a gas and atmospheric pressure Which distance represents this pressure difference?. At the top of the sealed off end of a mercury manometer Utube there's a gas at 30 degrees Celsius, its volume is 50 cubic centimeters The mercury level is 10 cm lower in the closed end than in the open end of the tube The barometer shows a pressure of 75 mmHg Find the normal volume of the gas Relevant Equations pV = nRT, p = ρgh. Definition Manometers is the devices during which an acceptable liquid is employed within the Manometric column to observe the difference in pressure between 2 totally different locations or one will say between a definite point and therefore the atmosphere mostly 5 Types of manometer.

The difference between the two devices Although the barometer is a little simpler than the manometer, it's actually a closeend manometer;. 1(a) 1 Barometer, 2 Piezometer, 3 Utube Manometer, and 4 Single Column Manometer A Barometer is a device used for measuring atmospheric pressureA simple Barometer consists of a tube of more than 30 inch (760 mm) long inserted into an open container of mercury with a closed and evacuated end at the top and open tube end at the bottom and with mercury extending from the container up into. Manometers and Barometers The piece of lab equipment specifically designed to measure the pressure of gases is known as the barometer A barometeruses the height of a column of mercury to measure gas pressure in millimeters of mercury or torr (1 mmHg = 1 torr).

Doubtnut is better on App Paiye sabhi sawalon ka Video solution sirf photo khinch kar Open App Continue with Mobile Browser Books Physics NCERT DC Pandey Sunil Batra HC Verma Pradeep Errorless. But if you arrive at a point where you feel it makes a difference you should start to weigh the dry ingredients Celine (June 7, 17). Pressure of gas in a closed container is equal in everywhere Manometers are used for measure pressure of gas in closed container There are two types of manometer, they are in U shape and filled with mercury If one of the end is open to the atmosphere, we call this type open manometer, and if it is closed, then we cal it closed manometer.

Manometer & Barometer DRAFT 10th grade 0 times Physics 0% average accuracy 3 minutes ago hannche 0 Save Edit Edit Manometer & Barometer DRAFT 3 minutes ago. And you can make a barometer out of it you can say, let me make a little notch on this test tube, and that represents one atmosphere You can go around and figure out how many atmospheres different parts of the globe are Anyway, I've run out of time See you in the next video Pressure at a depth in a fluid. Manometers can be open on both ends or closed on one end;.

The diagram shows a manometer containing a liquid The manometer is used to find the difference between the pressure of a gas and atmospheric pressure Which distance represents this pressure difference?. That is force exerted by atmospheric. G10 IGCSE Pressure (recap) DRAFT The diagram show two mercury barometer standing side by side The righthand diagram shows a tube bigger.

All barometers are manometers, but not all manometers are barometers;. The manometer is used to find the difference between the pressure of a gas and atmospheric pressure Which distance represents this pressure difference?. Measured by the difference in height of the two liquid surfaces 8 Utube barometers are Utube manometers in which the pressure on one liquid surface, usually mercury, is maintained at essentially zero pressure, as by evacuating the space above the tube and sealing the tube 9 Cistern barometers or manometers are those.

• Barometer is a type of closeend manometer 2 Need for brighter light when doing closer work Difference between “Exponential Growth” and “Logistic Growth” – Explained!. Barometer and Manometer Download PDF for free Barometer definition consisting of a Ushaped tube of liquid in which a difference in the pressures acting in the two arms of the tube causes the liquid to reach different heights in the two arms Simple barometer diagram. H = difference of light liquid Digital Manometer A digital manometer uses a microprocessor and pressure transducer to sense slight changes in pressure It gives the pressure readout on a digital screen It measures differential pressure across two inputs An analog/digital output in proportion to the instantaneous pressure can be obtained.

Barometer and Manometer Download PDF for free Barometer definition On opening the stopcock for a while a bubble is formed at B and the manometer level is recorded showing a difference h in the levels in the two arms if P be the density of manometer liquid and r the radius of curvature of the bubble then the surface tension. A liquid manometer in comparison to a mercury barometer, showing the difference in working principle A manometer allows the measurement of additional liquid/gas sources against atmospheric pressure or against other liquid/gas sources There are various types which allow you to adjust the pressure on one side to give a more accurate reading. A simple barometer is illustrated in the figure 1, Figure 1 Simple Barometer Explain the working of Manometer A manometer also has two repulsive forces against each other A force is exerted by the gas molecules in the flask The repulsive force is seen on the further region of the Mercury filled U tube;.

At the top of the sealed off end of a mercury manometer Utube there's a gas at 30 degrees Celsius, its volume is 50 cubic centimeters The mercury level is 10 cm lower in the closed end than in the open end of the tube The barometer shows a pressure of 75 mmHg Find the normal volume of the gas Relevant Equations pV = nRT, p = ρgh. As nouns the difference between manometer and barometer is that manometer is an instrument to measure pressure in a fluid, especially a doublelegged liquid column gauge used to measure the difference in the pressures of two fluids while barometer is an instrument for measuring atmospheric pressure. The manometers are classified as 09/05/17 PRESSURE MEASUREMENT (FMHM) BY SASIDHARG 8 (i) Simple manometer Piezometer Utube manometer single column manometer • Vertical single column manometer • Inclined single column manometer (ii) Differential manometer Utube differential manometer Inverted Utube differential manometer 9 Barometer.

B a barometer uses mercury, while a manometer can use any liquid a barometer is used to measure atmospheric pressure, and a manometer is used to measure absolute pressure C a barometer reads in mm, while a manometer reads in Pa D a barometer can measure either positivee or negative pressure, while a manometer only E positive pressure measures. The key difference between barometric pressure and atmospheric pressure is that barometric pressure is the pressure we measure using a barometer whereas atmospheric pressure is the pressure exerted by the atmosphere Atmosphere pressure and barometric pressure are two important concepts in pressure and thermodynamicsIt is vital to have a clear understanding of these concepts in order to. Simply, these are the pressure differences needed to move a column of fluid in a barometer/manometer 1mmHg is the pressure needed to move a column of mercury up one millimetre 1cmH2O is the pressure needed to move a column of water up one centimetre These are really complicated aren’t they!.

Differential Utube manometer (Fig 212) is very handy to measure the pressure difference directly and is basically similar to the Utube manometer discussed above What was the open end before is now connected to a different pressure, so that we measure the difference Now we have,. UNITEDSTATESDEPARTAIEXTOFCOMAIERCE• FrederickHMueller,Secret, NATIONALBUREAUOFSTANDARDSAVAstin,Director MercuryBarometersandManometers WGBrombacher,DP. Or what is the meaning of each one of them ?.

A barometer measures the pressure of the air around you A manometer is anything that measures pressure Therefore, all barometers are manometers If you are measuring the difference in air pressure between two parts of a system, that would be ref. The main difference between Manometer and Barometer is that the Manometer is a pressure measurement and Barometer is a scientific instrument used to measure atmospheric pressure ADVERTISEMENT Barometer A barometer is a scientific instrument used to measure air pressure Pressure tendency can forecast short term changes in the weather. Interpretation Difference between manometer and barometer must be explained Concept Introduction Manometer is a machine which is used to measure pressure of anything and barometer is used to measure pressure of air around us.

Both barometers and manometers now come in digital forms. A capacitance manometer pressure measurement head forms part of a parallel resonant circuit The Fortin barometer where h is the difference in liquid levels in the two limbs of the Utube, ϱ is the density of the liquid and g is the acceleration due to gravity. Manometers may have a highpressure gas attached to one end to be measured;.

What is the difference between barometer and manometer?. A barometer is an instrument to measure the environment pressure the range is very limited to about 5% A manometer is a standard pressure instrument, built for any defined measuring range, possibly up to 100 bar or more So a barometer is a special kind of manometer. Data h 1 = 024 m, h 2 = 035 m and h 3 = 052 m Assume the fluid densities are water 1000 kg/m 3, oil 790 kg/m 3 and mercury(Hg) 13,600 kg/m 3 Read Use the barometer equation to work your way through the different fluids from point 1 to point 2 Remember that gage pressure is the difference between the absolute pressure and atmospheric pressure.

So when you use barometer you measure pressure of external atmosphere and when you use manometer you measure internal pressure of gases and liquids (so you don't deal with open atmosphere itself). Barometers C Wassgren Last Updated 27 Nov 16 Chapter 02 Fluid Statics Pressure Measurements Using Barometers and Manometers As noted previously, differences in elevation can be used to measure differences in pressure This is the principle by which barometers and manometers operate Let’s first consider a barometer, which is most. The difference in the height of the liquid on the two sides of the tube is the differential pressure – Other types of manometers include the barometer and the inclined manometer If you have any questions about manometer and its applications, add them in the comments below and we will get back to you in less than 24 hours.
