Air Turbine Engine

Compressor Compresses the incoming air to high pressure Combustion area Burns the fuel and produces highpressure, highvelocity gas Turbine Extracts the energy from the highpressure, highvelocity gas flowing from the combustion chamber.

Air turbine engine. The “Crystal Ion”, an Aerodynamic Air Turbine Engine (AATE), is a redesigned prototype from an air engine invented by Haskall Karl in the 1960’s The origina. This is the engine part which actually produces the thrust for the plane The energy depleted airflow that passed the turbine, in addition to the colder air that bypassed the engine core, produces a force when exiting the nozzle that acts to propel the engine, and therefore the airplane, forward. Turbojet engines were the first type of gas turbine engine invented And even though they look completely different than the reciprocating engine in your car or plane, they operate using the same theory intake, compression, power, exhaust.

A turbine is a device that harnesses the kinetic energy of some fluid such as water, steam, air, or combustion gases and turns this into the rotational motion of the device itself These devices are generally used in electrical generation , engines , and propulsion systems and are classified as a type of engine. The turbojet is an airbreathing jet engine, typically used in aircraftIt consists of a gas turbine with a propelling nozzleThe gas turbine has an air inlet, a compressor, a combustion chamber, and a turbine (that drives the compressor) The compressed air from the compressor is heated by burning fuel in the combustion chamber and then allowed to expand through the turbine. The Aerodynamic Air Turbine Engine (AATE), aptly named "The Crystal Ion", will be the energy revolution we have been waiting for Clean energy utilizing the force of nature to create powerful and sustainable motion with no detrimental environmental impact is here.

A team of researchers from the US Army and two American universities has developed a new turbine engine design with improved performance through automatic, inair adjustment of its rotor blades The team claims the development will improve performance of a range of verticallift, turbinepowered aircraft such as those with turboshaft, turbofan, and turbojet engines. This is a small turbine engine, usually located near the tail, that provides compressed air and electricity It powers the aircraft's electrical systems on the ground, supplements compressed air while flying, and acts as an allaround backup for electrical and pneumatic needs And, it can send compressed air to both engines' air turbine starters. The Garrett air turbine starter We take one apart, and video one in action starting a large turbine engine In the process we see some things that have not.

The turbojet is an airbreathing jet engine, typically used in aircraftIt consists of a gas turbine with a propelling nozzleThe gas turbine has an air inlet, a compressor, a combustion chamber, and a turbine (that drives the compressor) The compressed air from the compressor is heated by burning fuel in the combustion chamber and then allowed to expand through the turbine. Centrifugal compressors of old gas turbine engine have cantype combustion chambers These combustion chamber sustain with their own air supply duct, fuel nozzle and flame tube within their casing. The Garrett air turbine starter We take one apart, and video one in action starting a large turbine engine In the process we see some things that have not.

Using the gaseous energy of the working fluid (air) to drive the engine and propeller, which, in turn, propel the airplane THE GAS TURBINE CYCLE The basic principle of the airplane turbine engine is identical to any and all engines that extract energy from chemical fuel The basic 4 steps for any internal combustion engine are 1 Intake of air (and possibly fuel) 2 Compression of the air (and possibly fuel) 3. Darron Prasad AMT 78 10/10/ Turbine Air Flow The gas turbine engine is comprised of different sections, each with a different job in order to produce thrust to move an aircraft forward To produce this thrust the turbine engine is built upon a few different principles and laws such as Bernoulli's principle, Newton's law, and the Brayton cycle Bernoulli’s principle states, “as the. The means of starting most turbine engines is high pressure bleed air This bleed source typically comes from an APU but may also come from an already running engine (crossbleed start) or an external huffer cart In some airplanes the start is completely FADEC controlled and need only be initiated and monitored by the flight crew, and in other airplanes certain steps must be manually initiated.

The Aerodynamic Air Turbine Engine (AATE), aptly named "The Crystal Ion", will be the energy revolution we have been waiting for Clean energy utilizing the force of nature to create powerful and sustainable motion with no detrimental environmental impact is here. The expanding air drives a turbine, which is connected by a shaft to the compressor, sustaining engine operation The accelerated exhaust gases from the engine provide thrust This is a basic application of compressing air, igniting the fuelair mixture, producing power to selfsustain the engine operation, and exhaust for propulsion. The aircraft turbine engine air entrance is designed to conduct incoming air to the compressor with a minimum energy loss resulting from drag or ram pressure loss The flow of air into the compressor should free of turbulence to achieve maximum operating efficiency Proper inlet design contributes materially to aircraft performance Compressor pressure ratio is the outlet pressure divided by.

The original airbreathing gas turbine jet engine was the turbojet It was a concept brought to life by two engineers, Frank Whittle in England UK and Hans von Ohain in Germany The turbojet compresses and heats air and then exhausts it as a high speed, high temperature jet to create thrust. The air turboramjet engine is a combined cycle engine that merges aspects of turbojet and ramjet engines The turboramjet is a hybrid engine that essentially consists of a turbojet mounted inside a ramjet The turbojet core is mounted inside a duct that contains a combustion chamber downstream of the turbojet nozzle. Gas turbine engines emit air contaminants including oxides of nitrogen, carbon monoxide, volatile organic compounds, oxides of sulfur, particulate matter and toxic air contaminants Engines with output power ratings of 03 MW or greater and heat input of 1 million BTU per hour or greater require a permit to operate Gas turbine engines are typically fueled with natural gas and may also use liquid fuel oil as a backup fuel Gas turbines can also combust biogas including landfill or digester.

The turbojet is an airbreathing jet engine, typically used in aircraftIt consists of a gas turbine with a propelling nozzleThe gas turbine has an air inlet, a compressor, a combustion chamber, and a turbine (that drives the compressor) The compressed air from the compressor is heated by burning fuel in the combustion chamber and then allowed to expand through the turbine. A turbine engine does not work in outer space because there is no surrounding air For a gas turbine engine, the accelerated gas, or working fluid, is the jet exhaust Most of the mass of the jet exhaust comes from the surrounding atmosphere Most modern, high speed passenger and military aircraft are powered by gas turbine engines Because gas turbine engines are so important for modern life, we will be providing a lot of information about turbine engines and their operation. Gas turbine, a type of internal combustion engine;.

Darron Prasad AMT 78 10/10/ Turbine Air Flow The gas turbine engine is comprised of different sections, each with a different job in order to produce thrust to move an aircraft forward To produce this thrust the turbine engine is built upon a few different principles and laws such as Bernoulli's principle, Newton's law, and the Brayton cycle Bernoulli’s principle states, “as the. The engine does not run on a compressed air tank, it runs on ambient air and runs on its own For more information on the Air Turbine Engine that runs on ambient air with no other fuel, follow these links. How to make a simple homemade compressed air turbine A simple tutorial made out of household materialsSubscribe to JoshBuilds http//bitly/2tbQbmi Watch.

Darron Prasad AMT 78 10/10/ Turbine Air Flow The gas turbine engine is comprised of different sections, each with a different job in order to produce thrust to move an aircraft forward To produce this thrust the turbine engine is built upon a few different principles and laws such as Bernoulli's principle, Newton's law, and the Brayton cycle Bernoulli’s principle states, “as the. Step 4 Turbine The turbine is another series of 'fans', which work like a windmill, absorbing energy from the high speed air passing through it The turbine blades are connected to and turn a shaft, which is also connected to the compressor blades at the front of the engine. A gas turbine engine has an inlet for delivering air into a compressor section The compressor section is connected to feed air into a combustion section, wherein the air mixes with fuel and combusts The combustion section is connected to turbine rotors such that products of combustion can pass over the turbine rotors to drive the turbine rotors.

Airturbine starters use compressed air from an external source as discussed earlier Fuel is turned on either by moving the start lever to “idle/start” position or by opening a fuel shutoff valve If an air turbine starter is used, the engine “lights off” within a predetermined time after the fuel is turned on. An air turbine starter (“ATS”) is a device used to start a turbine engine, such as a gas turbine jet engine The air turbine starter is used to start the jet engine, much as a starter for an automobile is used to start the automobile's engine In order to start the jet engine, the air turbine starter is activated. The air intake of a gas turbine engine is either built into the frame itself, if the engine is mounted in the airframe It is designed to provide a turbulence free supply of air to the first stage compressor of the engine, with the minimum energy loss occurring through the inlet.

Figure 1 Diagram of a typical gas turbine jet engine Air is compressed by the fan blades as it enters the engine, and it is mixed and burned with fuel in the combustion section The hot exhaust gases provide forward thrust and turn the turbines which drive the compressor fan blades (Photo credit Wikipedia). The turbojet is an airbreathing jet engine, typically used in aircraftIt consists of a gas turbine with a propelling nozzleThe gas turbine has an air inlet, a compressor, a combustion chamber, and a turbine (that drives the compressor) The compressed air from the compressor is heated by burning fuel in the combustion chamber and then allowed to expand through the turbine. The air passes into the starter turbine housing where it is directed against the rotor blades by the nozzle vanes causing the turbine rotor to turn As the rotor turns, it drives the reduction gear train and clutch arrangement, which includes the rotor pinion, planet gears and carrier, sprag clutch assembly, output shaft assembly, and drive coupling.

Select from the single engine turbine aircraft for sale manufacturers below to view aircraft designations by model These single engine turbine aircraft for sale are available immediately Most of the aircraft for sale listings include aircraft serial number or aircraft registration, and aircraft price. Using the gaseous energy of the working fluid (air) to drive the engine and propeller, which, in turn, propel the airplane THE GAS TURBINE CYCLE The basic principle of the airplane turbine engine is identical to any and all engines that extract energy from chemical fuel The basic 4 steps for any internal combustion engine are 1 Intake of air (and possibly fuel) 2 Compression of the air (and possibly fuel) 3. A turbine engine does not work in outer space because there is no surrounding air For a gas turbine engine, the accelerated gas, or working fluid , is the jet exhaust Most of the mass of the jet exhaust comes from the surrounding atmosphere.

Turbine engines produce thrust by increasing the velocity of the air flowing through the engine Turbine engines A turbine engine consists of an air inlet, compressor, combustion chambers, turbine section, and exhaust. In the PHT3 single shaft helicopter engine, power is taken directly from the turbine rotor The pic Learn More Out of stock. To generate electricity, the gas turbine heats a mixture of air and fuel at very high temperatures, causing the turbine blades to spin The spinning turbine drives a generator that converts the energy into electricity.

An air turbine is a turbine driven by airflow Various forms include Wind turbine, a renewable energy source;. The aircraft turbine engine air entrance is designed to conduct incoming air to the compressor with a minimum energy loss resulting from drag or ram pressure loss The flow of air into the compressor should free of turbulence to achieve maximum operating efficiency Proper inlet design contributes materially to aircraft performance Compressor pressure ratio is the outlet pressure divided by. In a small hand held turbine powered by compressed air and chiefly intended for dental surgery purposes, the combination of at least one series of blades adapted to revolve at several hundred.

(In a typical jet engine, 100 pounds of air/sec is combined with only 2 pounds of fuel/sec Most of the hot exhaust has come from the surrounding air) Leaving the burner, the hot exhaust is passed through the turbine The turbine works like a windmill Instead of needing energy to turn the blades to make the air flow, the turbine extracts. HIGHSPEED SILENT AIR TURBINE Filed July 19, 1962 United States Patent 3,193,251 HEGHSJEED SILENT AlR TURBINE Andre Lucien Laurent Erunel, 1 Rue de Rivoli, and Robert Maurice lviercier, 172 Blvd du Montparnasse, both of Paris, France Filed July 19, 1962, Ser No 211,046 Claims priority, application France, July 22, 1961, 568,875 Patent. How Does an Air Starter Work?.

Small air turbines, used as highspeed pneumatic motors in tools such as dentist's drills. March 17th, 15 Turbine vs Vane Motors How does an air starter use air to start an engine?. The turbojet is an airbreathing jet engine, typically used in aircraftIt consists of a gas turbine with a propelling nozzleThe gas turbine has an air inlet, a compressor, a combustion chamber, and a turbine (that drives the compressor) The compressed air from the compressor is heated by burning fuel in the combustion chamber and then allowed to expand through the turbine.

FAA handbook via Wikimedia CommonsDiagram of a typical gas turbine jet engine Air is compressed by the fan blades as it enters the engine, and it is mixed and burned with fuel in the combustion section The hot exhaust gases provide forward thrust and turn the turbines which drive the compressor fan blades. An idealized gasturbine engine operating without any losses on this simple Brayton cycle is considered first If, for example, air enters the compressor at 15° C and atmospheric pressure and is compressed to one megapascal, it then absorbs heat from the fuel at a constant pressure until the temperature reaches 1,100° C prior to expansion through the turbine back to atmospheric pressure. The answer to this question lies in the type of motor an air starter is equipped with There are two types of motors that dominate the industry vane motors and turbine motors.

The concept that a high pressure gas will move to an area of lower pressure is the concept that will drive our compressed air turbine The compressed gas will move through the turbine to the area outside the turbine As it moves through it, the air will push the fins, and cause the turbine to rotate. Small Turbine Engines PBS AEROSPACE production division, is a manufacturer of aircraft turbojet engines These engines use power generated by the continuous burning of a mixture of fuel and compressed air. The following figure shows the general layout of an axialflow gas turbine the sort of engine you would find driving the rotor of a helicopter, for example Advertisement In this engine, air is sucked in from the right by the compressor.

These reduction gears allow for sufficient torque to be generated by the engine flywheel while it is engaged by the pinion gear of the air motor or air starter Turbine motors Air turbines spin the burr in highspeed dental handpieces, at speeds over 180,000 rpm, but with limited torque A turbine is small enough to fit in the tip of a handpiece without adding to the weight. The Turbine Engine sector allows Air Industries Group to offer precision machined and welded assemblies up to 78” in diameter Manufactured from a wide range of exotic materials, we offer our customers a unique and comprehensive capability through the Turbine Engine sector, providing turnkey welded solutions. A team of researchers from the US Army and two American universities has developed a new turbine engine design with improved performance through automatic, inair adjustment of its rotor blades The team claims the development will improve performance of a range of verticallift, turbinepowered aircraft such as those with turboshaft, turbofan, and turbojet engines.

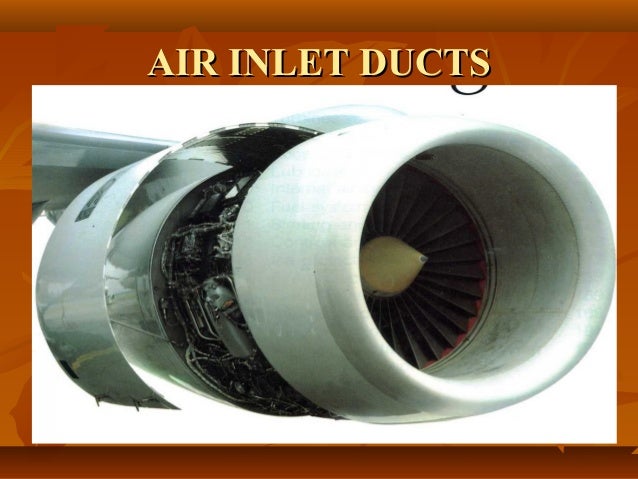

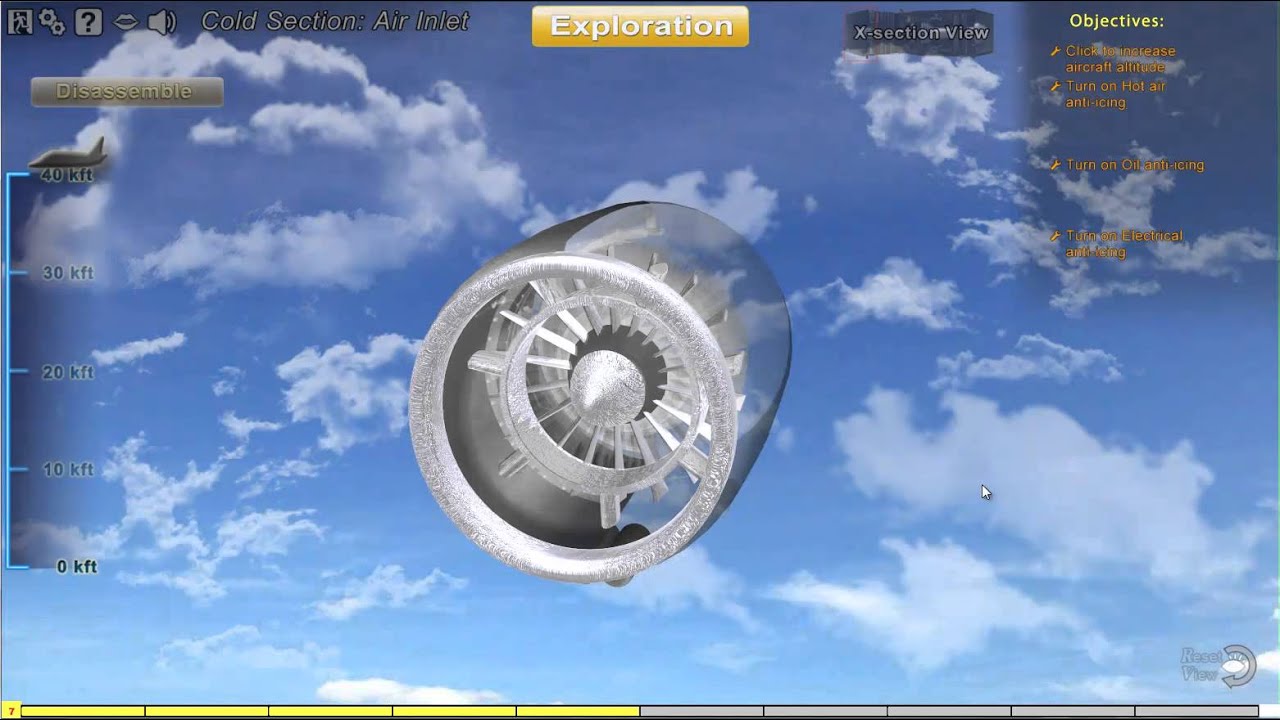

Air Intakes the air intake of a gas turbine engine is either built into the frame itself, if the engine is mounted in the airframe It is designed to provide a turbulence free supply of air to the first stage compressor of the engine, with the minimum energy loss occurring through the inlet. Small Turbine Engines PBS AEROSPACE production division, is a manufacturer of aircraft turbojet engines These engines use power generated by the continuous burning of a mixture of fuel and compressed air.
