Saw resonator. SAW stands for Surface Acoustic Wave These waves propagate at the surface of crystal of piezoelectric type in order to carry information The SAW resonators are used to construct oscillators like crystal resonators. A basic SAW resonator consists of an interdigital transducer between two grating reflectors The reflectors form a resonant cavity, and the transducer couples the cavity to the external circuit. Rf saw resonators through hole product frequency range (mhz) health dimensions (mm) application photo rohs environmental reach environmental conflict minerals environmental;.

AbstractThe surfaceacousticwave (SAW) resonator is the surfacewave equivalent of the crystal resonator now used extensively for stable frequency sources and filters HighQ operation above 30 MHz, ruggedness, and small size characterize these devices. Surface Acoustic Wave (SAW) resonators with high resonant frequency (in the GHz range) are described In this work Interdigital Transducers (IDTs) of the SAW resonator are scaled down to 150nm The resonant frequency of a SAW resonators is mainly limited by the width of IDTs and types of piezoelectric materials used. SAW resonators have been used in applications as diverse as wireless point of sale terminals, wireless tire pressure monitoring devices and microwave digital radios They have been used as biomarkers in detecting disease markers and can even sniff out the presence of plastic explosives remotely.

Singlepole resonators using SAW cavities were first pro posed in 1970 1, 2 By the mid 1970’s, singlepole resona tors were becoming practical and multipole SAW CR filters were shown to be feasible. SAW Resonator SAW Surface Acoustic Wave Resonators are being recognized by more and more public figures because of its good features and performances They have been widely used in communication, CATV, wireless remote control, satellite receivers, radio and video transmission fields. TST TaiSaw technology major producer and developer of parts and modules used in SAW and Crystal, professional manufacturing company TST is now recognized as the leading SAW device supplier in Taiwan, as well as the key OEM/ODM supplier of SAW device in the world While firmly committed to its core strength in the manufacturing and design of the SAW devices, since early 01 TST has expanded.

Resonators Abracon offers highfrequency SAW resonators and miniature, rugged ceramic resonators available in a wide resonant frequency range. The figure4 depicts 2 port SAW resonator It uses two IDTs, one for input and the other for output between the gratings The 2port SAW resonator is used as filter due to its propagation characteristics between IDTs What is Difference between. We previously reported that for a surface acoustic wave (SAW) resonator on a threelayer structure, which is composed of a thin LiTaO 3 (LT) plate whose orientation is 50° rotated YX propagation, SiO 2 layer, and AlN layer on a Si substrate, a Qfactor several times higher than that of an SAW resonator on a standard 42° rotated YX propagation LiTaO 3 (42YXLT) substrate could be obtained.

A wide variety of saw resonator options are available to you, such as other You can also choose from not applicable, 33pf, and 10pf saw resonator, as well as from ±50ppm, 0032ppm, and ±30ppm saw resonator There are 652 suppliers who sells saw resonator on Alibabacom, mainly located in Asia. A recent report added by Market Study Report, LLC, on ' Surface Acoustic Wave Resonator Market' provides a detailed analysis on the industry size, revenue forecasts and geographical landscape pertaining to this business space Additionally, the report highlights primary obstacles and latest growth trends accepted by key players that form a part of the competitive spectrum of this business. SAW AE SDST February page 3/12 Narrowband Filter for ISM (high temperature stability) Center Frequency Type Remark Usable Passband Insertion Attenuation Package size Feature DS link MHz MHz dB mm*mm 1695 U310 0 19 5*5 942 0 0 039 26 27 27.

A surface acoustic wave (SAW) resonator includes a piezoelectric layer disposed over a substrate, and a plurality of electrodes disposed over the first surface of the piezoelectric layer. SAW resonators operate at higher frequencie than other mechanical piezo materials, and they are often used in radio transmitters where tunability is not required Some applications such as garage door openers, remote controls, short range radio frequency links for computer peripherals, and other devices where channelization is not required. SAW Resonator The SAW resonator is an electronic element that exhibits resonance or resonant behavior In RF wireless remote control system, it is used as a frequency control element in the transmitting and receiving oscillating circuits.

The SAW resonator is embedded between two ”pi”type tuning networks These networks control phase shift in the feedback loop to meet the oscillation conditions Otherwise they match the input and output impedance of the transistor to the desired load and source impedances of the SAW resonator. SAW Resonators (224 to 315MHz) Overview of SAW resonator range (Surface Acoustic Wave) covering frequency range 224MHz up to 315MHz with different packages for through hole mounting and SMD types. SAW resonators may be configured electrically as oneport or twoport networks Their operation is based around the judicious use of SAW reflection gratings to form resonant structures.

Rsr series a pdf spec 00 to Ø = 95, h = 38 wireless communication certificate declaration rsr series b pdf spec. ONE Lot 36 RFM R 3035MHz SAW RESONATOR in Low Profile TO393 Pkg $3600 $850 shipping or Best Offer TOSHIBA FSM 1Port SAW Resonator 6123MHz **NEW** Qty5 $699 $299 shipping pcs m mhz 4339mhz d11 saw resonator crystal oscillator $999 Free shipping. I've attached the data sheets, both are the same frequency and look to have similar specs @betwixt had some helpful answers for me in the past.

The SAW resonator basics and types including function and definition are also described In SAW (Surface Acoustic Wave) devices, wave travels on the surface of piezoelectric materials They use wafers made from quartz crystal, LiTaO3 or LiNbO3 as piezoelectric materials. SAW RF resonators are cheaper than BAW RF resonators and are used for RF Filter applications for frequencies below 15 GHz SAW RF filters have low Qfactor values and require temperature compensation method. In some papers, I found that the Q of resonator, ie oneport SAW resonator, can be calculated with the formula 1/f0*(diff(phi(f),f)@f=f0),phi(f) is the The Q factor calculation for the twoport SAW resonator Physics Forums.

Hi, question on SAW resonators Does anyone have any idea why R can't simply be used as a drop in replacement for R2622 in an existing transmitter?. The SAW resonator is embedded between two ”pi”type tuning networks These networks control phase shift in the feedback loop to meet the oscillation conditions Otherwise they match the input and output impedance of the transistor to the desired load and source impedances of the SAW resonator. SAW resonators are used to generate high frequencies above the frequency range from obtained from crystal quartz, below some key features Direct oscillation without multiplication in VHF and UHF therefore free from submultiples of the fundamental Miniature or subminiature size and excellent phase noise.

Saw Resonators A surface acoustic wave (SAW) that is propagating at the surface of a piezoelectric crystal can be used to carry information A basic SAW resonator consists of an interdigital transducer and two grating reflectors, which are fabricated on a piezoelectric material by a photolithographic process. Resonators are devices that exhibit resonant behavior associated with a very high reactive peak at the resonant frequency They are used in applications where narrow oscillation or filtering characteristics are required This includes oscillator circuits and band pass filter sections Resonators are based upon a number of different. SAW resonator lters are generally much narrower band than transversal lters, and have much lower insertion loss, but have nonlinear phase response and are more limited in shape factor By adjusting the length and position of the electrodes, a SAW lter designer can achieve almost any nite impulse response.

SAW RESONATER has generally 2 types of 1port type and 2port type 1port SAW RESONATOR is basically a 2 terminal device and its application is similar to that of quartz bulk wave resonator or ceramic resonator. Array of shorted electrodes on left and right act like SAW mirror and hence forms SAW resonator Right IDT could be then used to detect SAW in cavity Analogous to the reflection of optical waves because of index difference, metal electrodes or grooves on substrate could reflect SAW An array of them act like SAW mirror. Rsr series a pdf spec 00 to Ø = 95, h = 38 wireless communication certificate declaration rsr series b pdf spec.

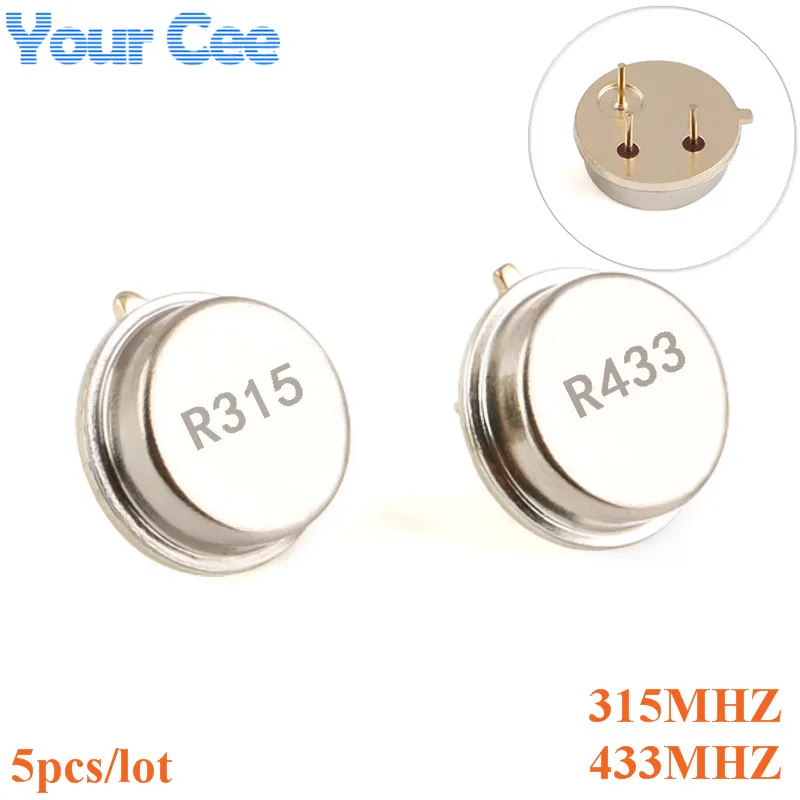

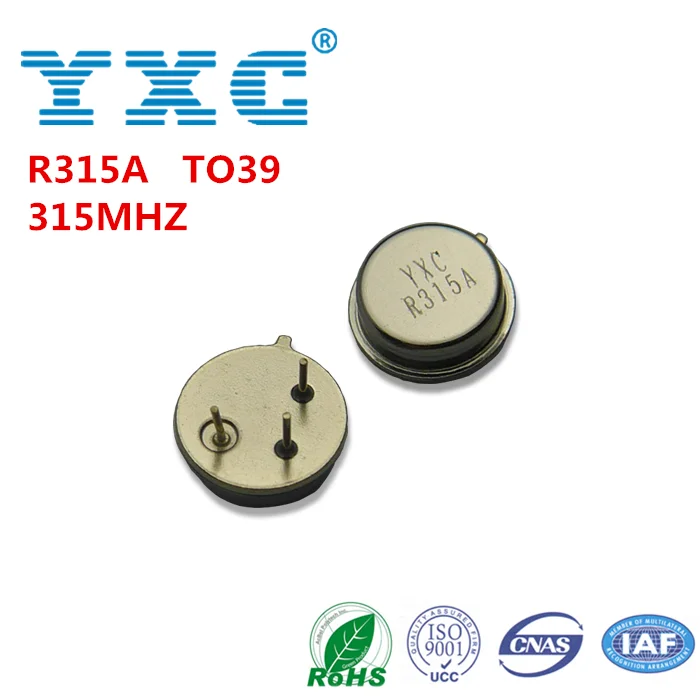

The 315MHz SAW resonator must be in a place with low temperature, 40 ℃ for thirty minutes, following by a high temperature of 25℃ for five minutes and then ahigher temperature of 85℃ for 30 minutes. Rf saw resonators through hole product frequency range (mhz) health dimensions (mm) application photo rohs environmental reach environmental conflict minerals environmental;. Saw Resonators are available at Mouser Electronics Mouser offers inventory, pricing, & datasheets for saw Resonators.

Resonator ・〕ter (CRF) that take advantage of mode coupling is considered in realizing such a device to help in shaping the phase transfer characteristics of a high mass sensitivity sensor The device design and simulation results are presented within the couplingofmodes. Interdigital structure Reflectors The SAW chip is a piezoelectric single crystal (eg quartz, lithium tantalate, lithium niobate), polished on the surface and coated with one or more comblike, interlocking electrode fingers, socalled interdigital transducers These usually consist of aluminum and are deposited by photolithographic means. The 315MHz SAW resonator must be in a place with low temperature, 40 ℃ for thirty minutes, following by a high temperature of 25℃ for five minutes and then ahigher temperature of 85℃ for 30 minutes.

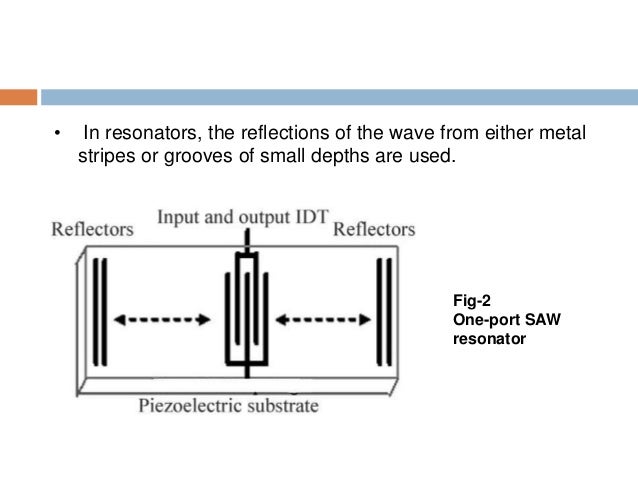

Resonators are devices that exhibit resonant behavior associated with a very high reactive peak at the resonant frequency They are used in applications where narrow oscillation or filtering characteristics are required This includes oscillator circuits and band pass filter sections Resonators are based upon a number of different. SAW resonators are mainly classified into two types oneport and twoport resonators as shown in Figure 2 Oneport resonator action can be achieved by multiple reflections between the fingers of a long IDT or reflections by the reflectors at the either end of a short IDT. SAW sensors have seen relatively modest commercial success to date, but are commonly commercially available for some applications such as touchscreen displays SAW device applications in radio and television SAW resonators are used in many of the same applications in which quartz crystals are used, because they can operate at higher frequency.
